BATTERY & CHARGER NOT INCLUDED

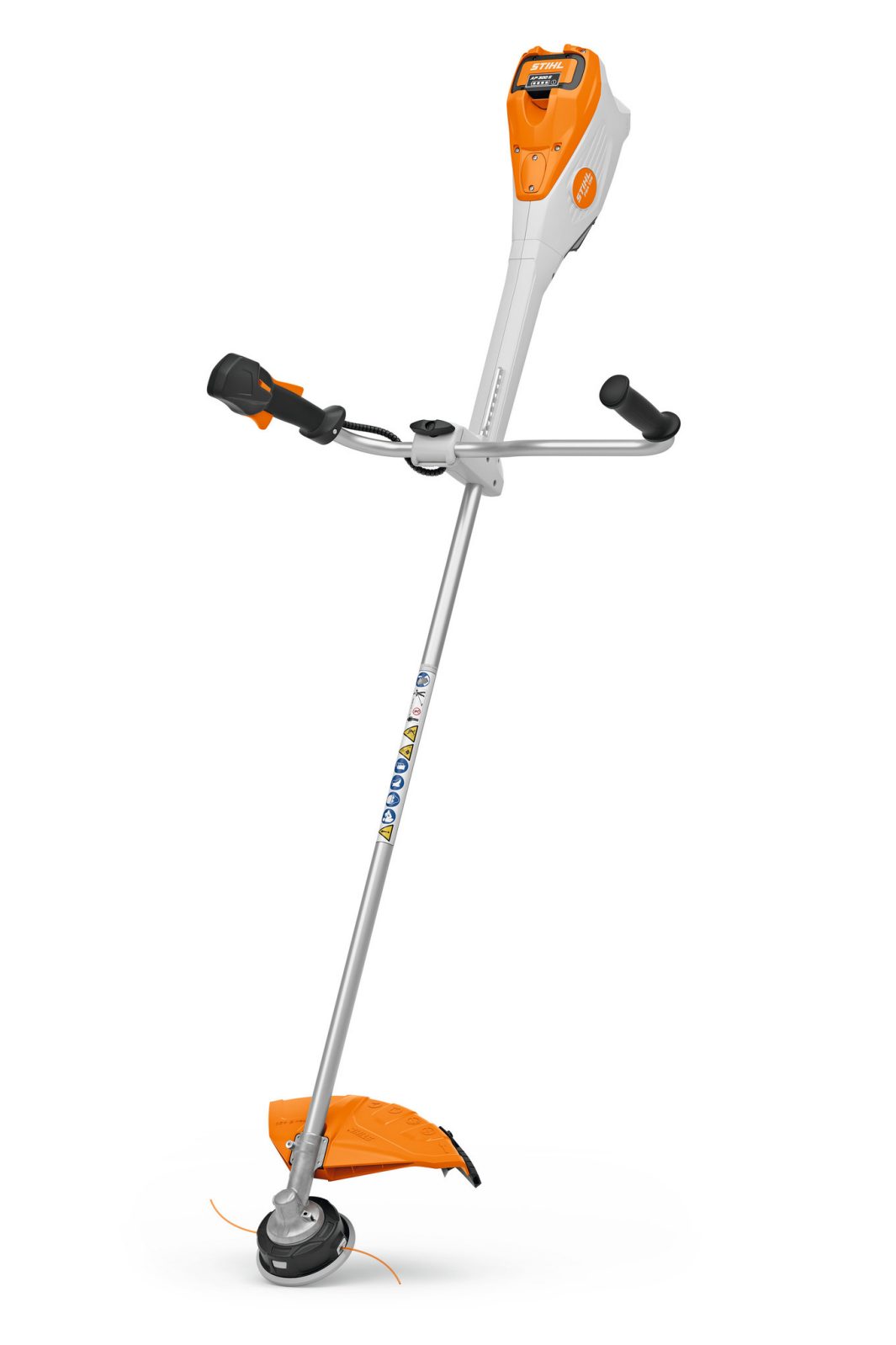

The FSA 135 cordless brushcutter is the right choice for the maintenance of green areas in noise-sensitive environments by garden and landscape maintenance professionals or local authorities. With its ergonomic bike handle (mowing handle), you can mow larger lawns comfortably and effectively.
Thanks to the powerful EC engine and the wide range of STIHL cutting tools that you can use with this brushcutter, the FSA 135 is ideal for green area maintenance and mowing grass and scrub. The brushcutter’s ergonomic control handle enables you to adjust the speed on an infinitely variable basis. So that you can work as efficiently as possible and save energy, you can choose between 3 speed settings. Power-saving mode is indicated by an LED. An air filter with metal grille ensures a long service life as it provides optimum engine cooling. This air filter is also easy to clean. The power tool housing of the FSA 135 has a dedicated position for the STIHL Smart Connector 2 A.
Technical Details
| Rated voltage | 36 |
| Max. voltage | 40 |
| Power consumption | 1.20 kW |
| Power | 1 kW 1) |
| Cordless power system | AP |
| Recommended battery | AP 300 S |
| Device weight without battery | 4.9 kg 2) |
| Cutting circle diameter | 420 mm |
| IP Rating | IPX4 |
| Min. battery working time AP 200 with metal blade | 30 min 3) |
| Max. battery working time AP 200 with metal blade | 50 min 3) |
| Min. battery working time AP 200 S with metal blade | 30 min 3) |
| Max. battery working time AP 200 S with metal blade | 50 min 3) |
| Min. battery working time AP 300 with metal blade | 40 min 3) |
| Max. battery working time AP 300 with metal blade | 70 min 3) |
| Min. battery working time AP 300 S with metal blade | 50 min 3) |
| Max. battery working time AP 300 S with metal blade | 100 min 3) |
| Min. battery working time AP 500 S with metal blade | 60 min 3) |
| Max. battery working time AP 500 S with metal blade | 120 min 3) |
| Min. battery working time AR 1000 with metal blade | 100 min 3) |
| Max. battery working time AR 1000 with metal blade | 200 min 3) |
| Min. battery working time AR 2000 with metal blade | 150 min 3) |
| Max. battery working time AR 2000 with metal blade | 300 min 3) |
| Min. battery working time AR 2000 L with metal blade | 170 min 3) |
| Max. battery working time AR 2000 L with metal blade | 330 min 3) |
| Min. battery working time AR 3000 L with metal blade | 256 min 3) |
| Max. battery working time AR 3000 L with metal blade | 458 min 3) |
| Device length without cutting tool | 188 |
| Sound pressure level | 80 dB(A) 4) |
| Sound power level | 92 dB(A) 4) |
| Vibration value on the left in right-handed operation | 2.1 m/s² 5) |
| Vibration value on the left in right-handed operation | 2.9 m/s² 5) |
| Vibration value on the right in right-handed operation | 2 m/s² 5) |
| Vibration value on the right in right-handed operation | 1.8 m/s² 5 |
